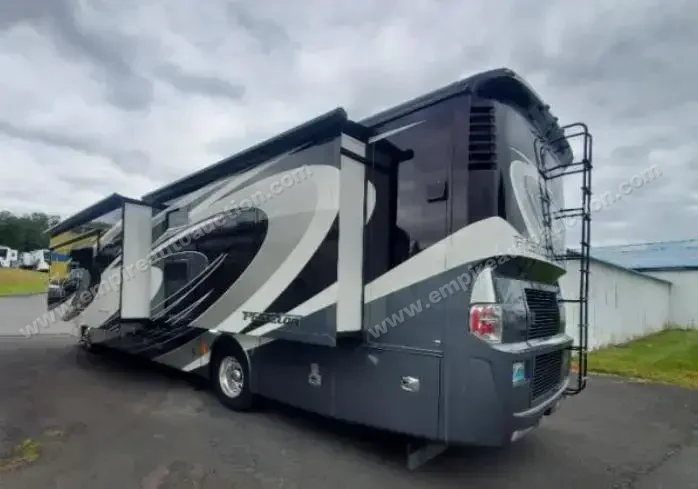

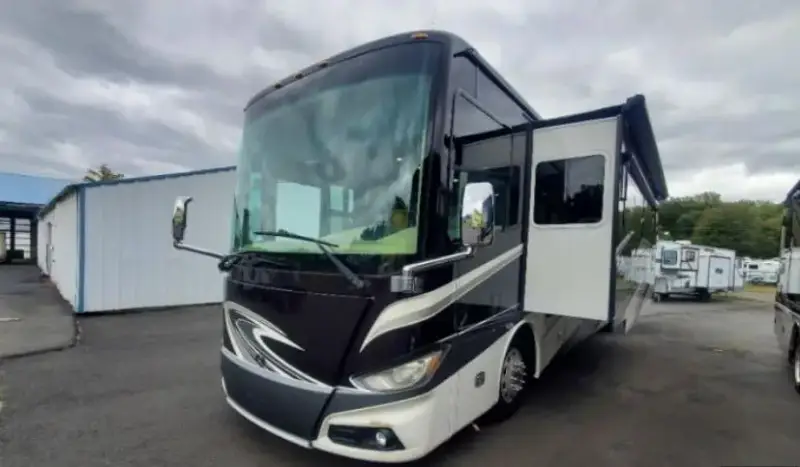

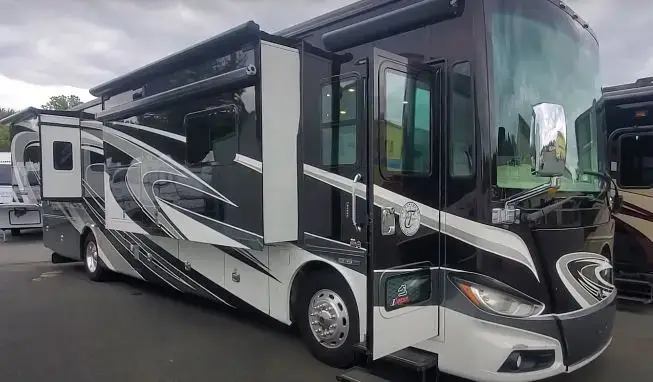

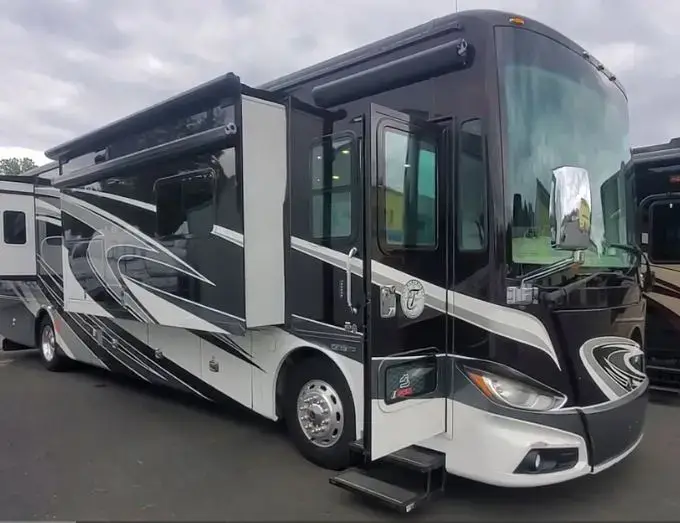

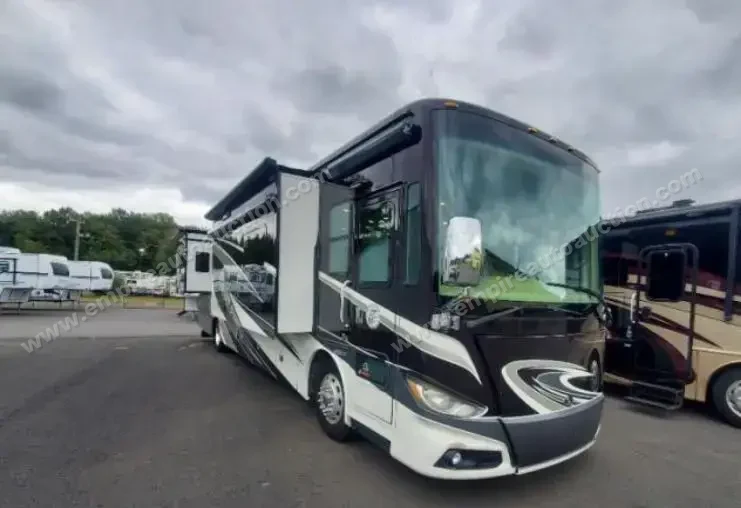

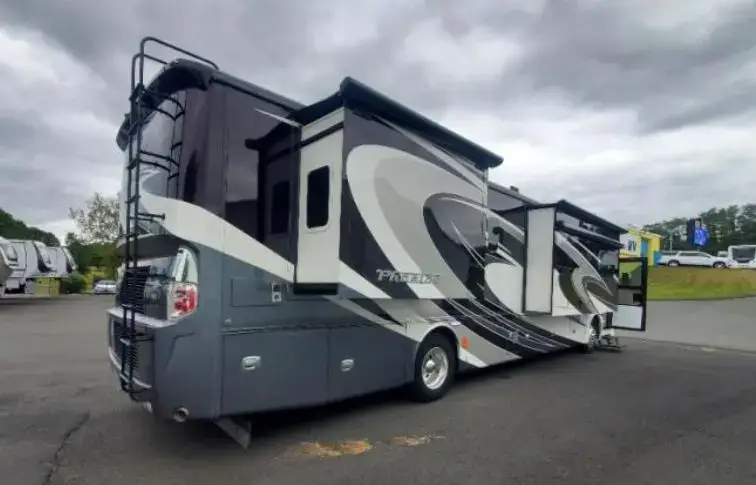

The 2016 Tiffin Phaeton 40 QKH is a 41-foot Class A diesel pusher built on a raised-rail Freightliner chassis and powered by a 380 HP Cummins ISC 8.9L turbo-diesel engine paired with an Allison 3000 MH 6-speed automatic transmission. Designed specifically for multi-passenger travel, this quad-slide layout features a dedicated bunkhouse floorplan that comfortably sleeps up to 9 people.

Constructed with Tiffin’s signature one-piece molded fiberglass roof, gel-coat fiberglass sidewalls, and porcelain tile flooring throughout, this coach combines high-end structural durability with home-like comfort. Key amenities include a 10.0 kW Onan Quiet Diesel generator on a manual slide-out, a 2,000-watt sine wave inverter, six 6V auxiliary batteries, dual ducted furnaces, and a side-aisle bathroom. The functional kitchen includes solid surface countertops, an expand-an-island, a residential stainless steel refrigerator, and a convection microwave.

Chassis, Engine & Performance

• Chassis: Freightliner® Raised Rail Chassis
• Engine: 380 HP Cummins® ISC Turbo Diesel
• Transmission: Allison® 3000 MH 6-Speed Automatic
• Suspension & Brakes: Air Ride Suspension (4 Air Bags), Air Brakes with ABS, and Exhaust Brake
• Maneuverability & Towing: 55° Wheel Cut Angle, Adjustable Pedals, and 10,000 lb Hitch Receiver
• Wheels & Tires: Aluminum Wheels with 275/80R22.5 Tires

Construction, Exterior & Storage

• Roof Construction: One-Piece Molded Fiberglass Roof Cap with Internal A/C Condensation Drainage System
• Sidewalls & Structure: 2" Thick Gel-Coat Fiberglass Sidewalls with Tubular Aluminum Skeleton
• Awnings & Hardware: Metal-Wrapped Automatic Patio Awning, Automatic Entry Door Awning, and Window Awning Package
• Cargo & Access: Lockable Swing-Out Basement Doors with Gas Shocks, Motion-Sensor Storage Lighting, and Roof Access Ladder
• Leveling & Fuel: Hydraulic Automatic Leveling Jacks and Dual Fuel Fills

Electrical, Generator & Climate Control

• Generator: 10.0 kW Onan® Diesel Generator on Manual Slide-Out Tray
• Power & Inverter: 2,000-Watt Pure Sine Wave Inverter with 100 Amp Converter & Transfer Switch
• Batteries: Six (6) 6V Auxiliary House Battery Bank
• Climate Control: Extraordinaire™ Ducted A/C System and Two (2) Ducted Furnaces
• Sanitation & Water: Heated Water and Holding Tank Compartments, Black Tank Flush System, Electric Hose Reel, and Electric Power Cord Reel

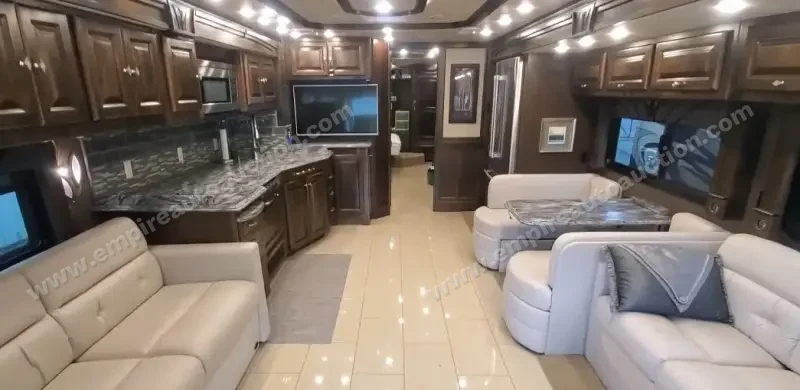

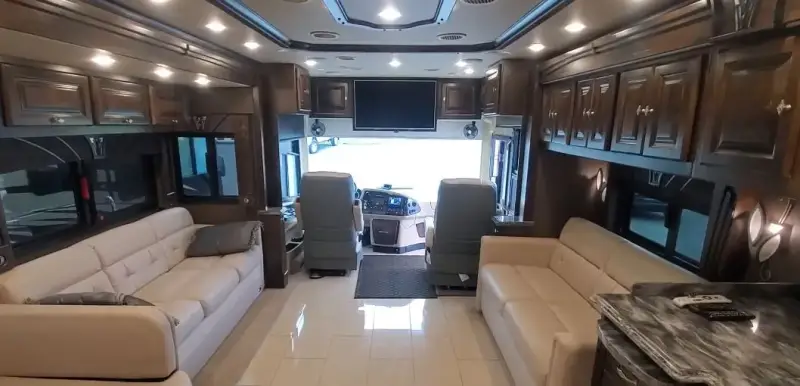

Living Area, Furniture & Layout

• Slideouts: 4 (Quad-Slide Configuration)

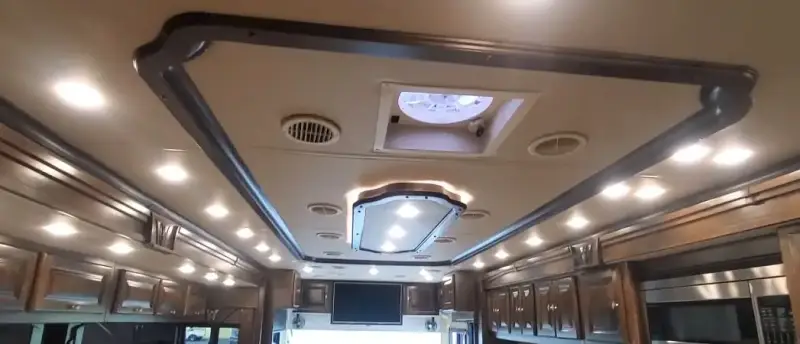

• Ceilings & Flooring: 7' Interior Height with Soft-Touch Vinyl Trey Ceiling & Porcelain Tile Flooring

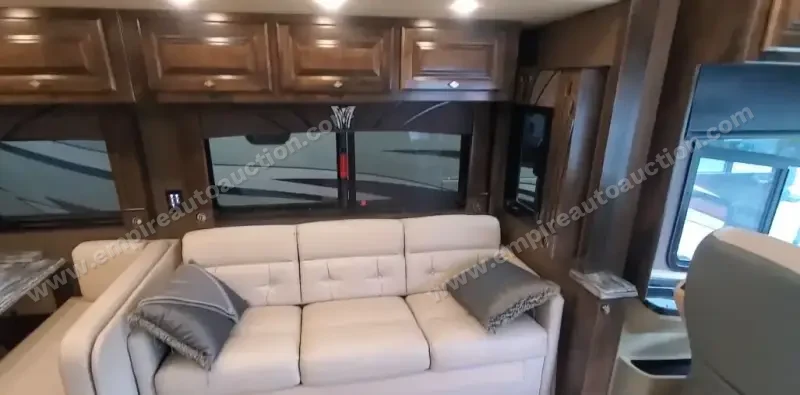

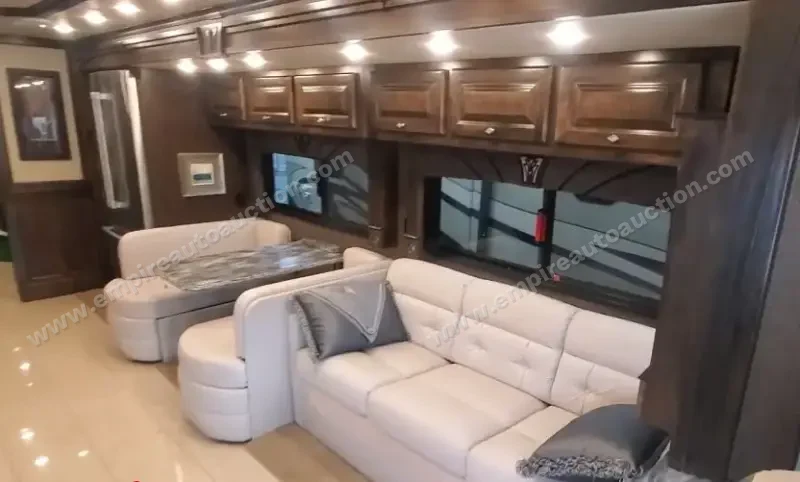

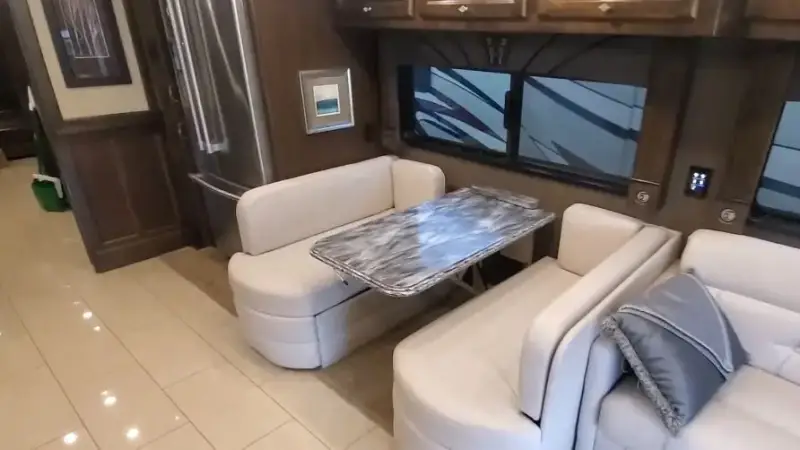

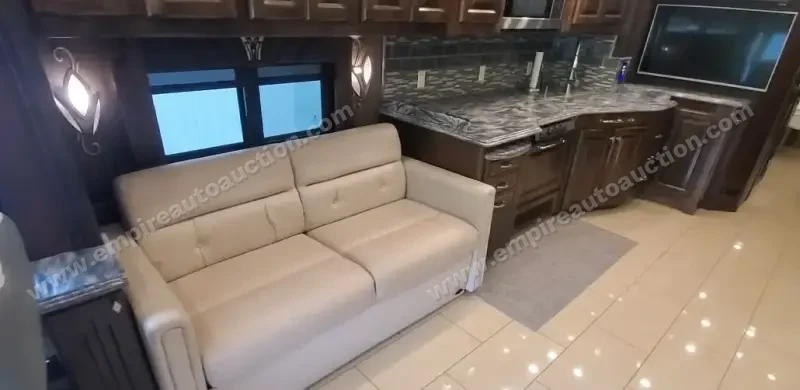

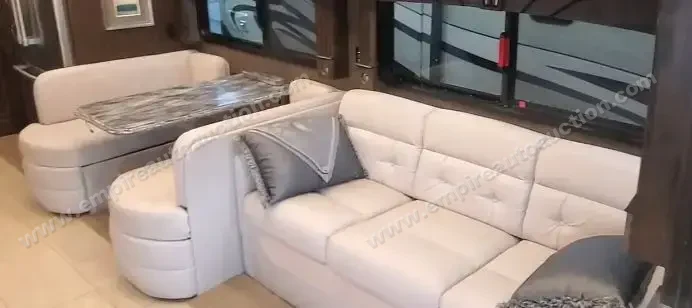

• Seating & Dining: Ultra Leather Booth Dinette/Sleeper and Living Room Sofa Beds

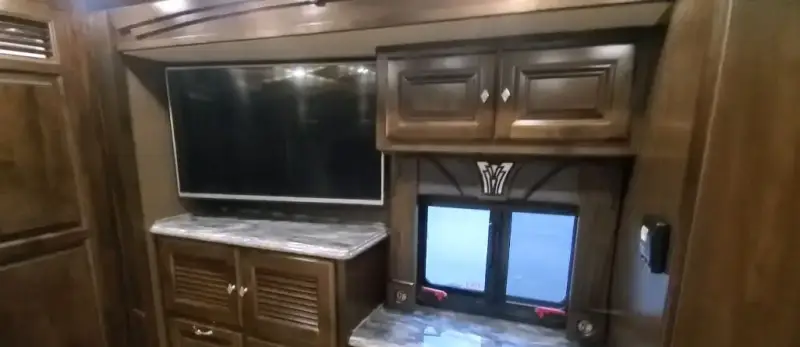

• Entertainment & Salon: Living Area Entertainment Setup with Surround Sound Home Theater System and Solar/Privacy Shades

Kitchen & Dining Amenities

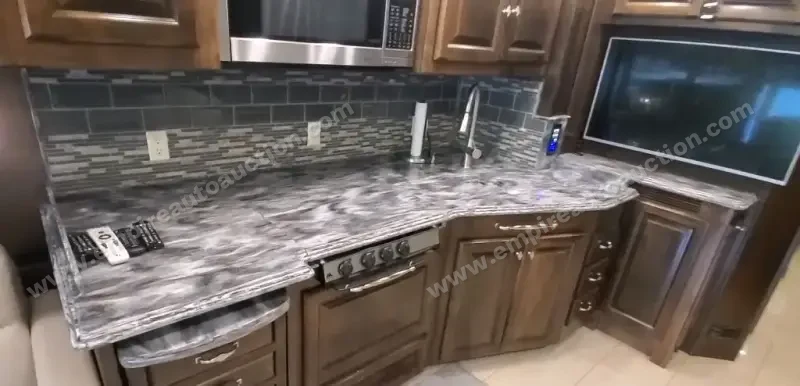

• Countertops: Solid Surface Countertops with Stainless Steel Double Sink & Solid Surface Covers

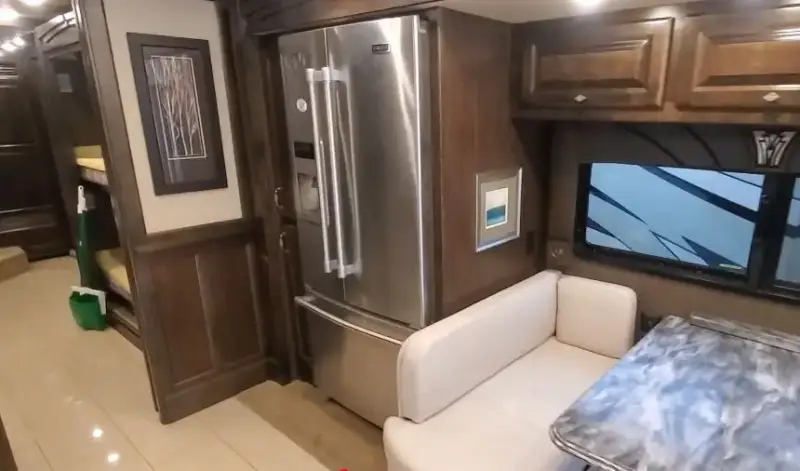

• Refrigeration: Residential Stainless Steel Refrigerator
• Cooking: 3-Burner Stainless Steel Cooktop & Stainless Steel Microwave/Convection Oven
• Convenience: Expand-an-Island Slideout Extension, Galley Splash Guards, and Built-In Waste Can

Bunkhouse & Master Suite

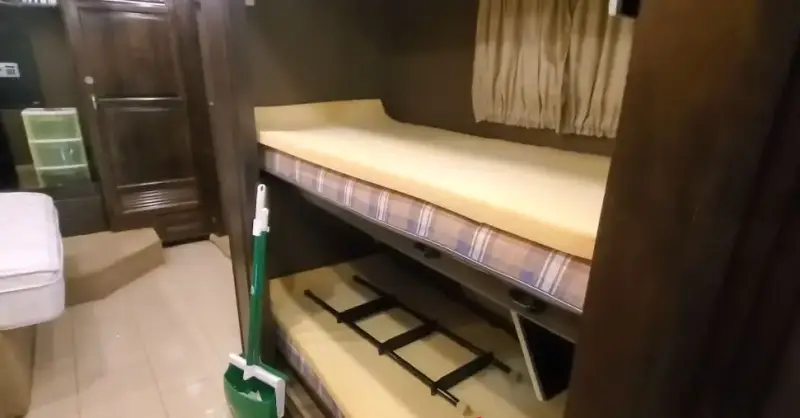

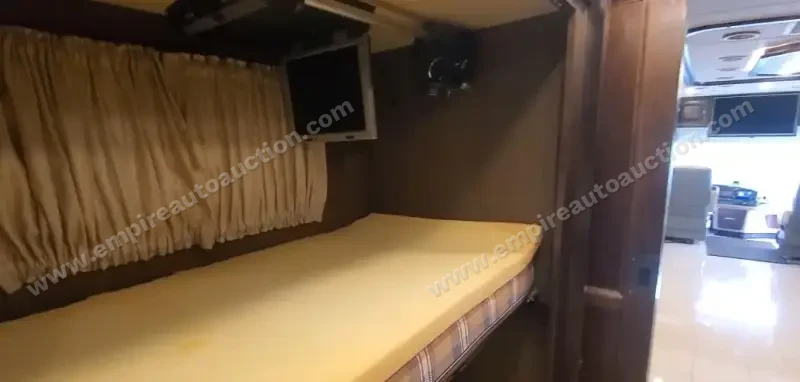

• Bunkhouse Suite: Slideout Bunk Beds with Safety Ladder across from Main Salon/Bedroom Storage

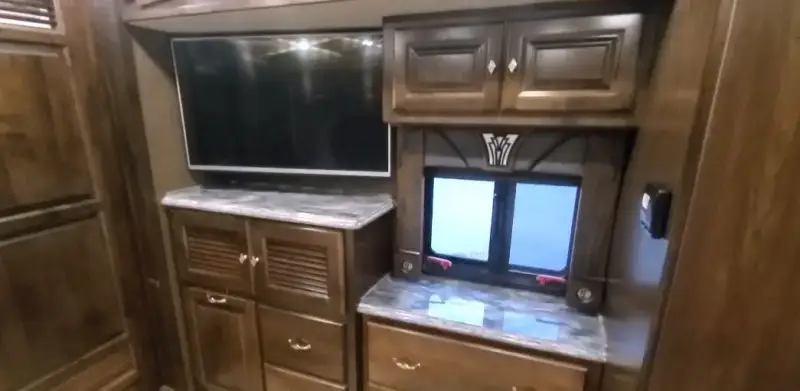

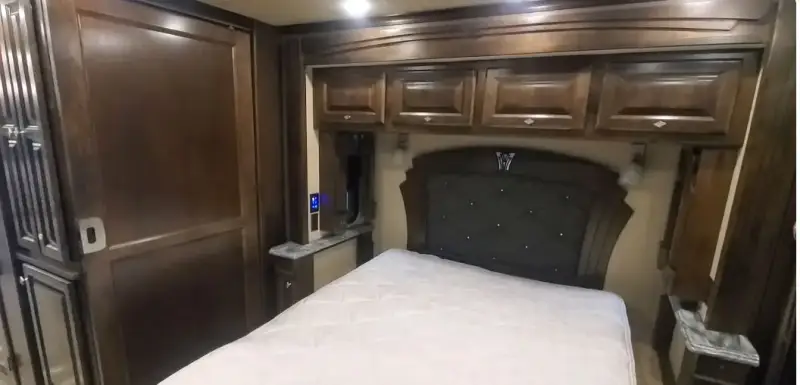

• Master Bedroom: Private Rear Bedroom with Queen Bed (Nightstands & Overhead Storage), Wardrobe with Automatic Light, and Chest of Drawers

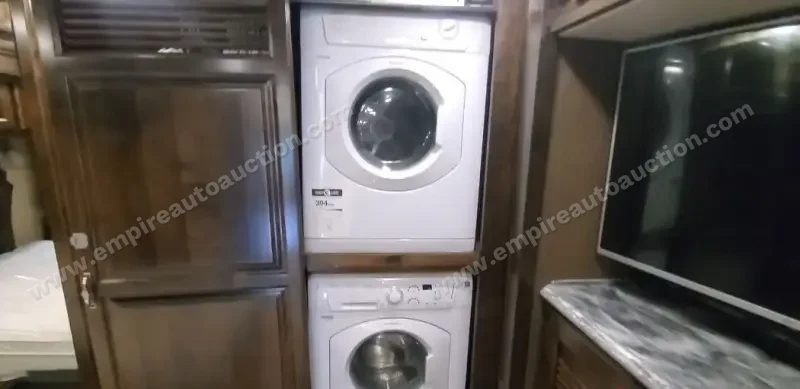

• Washer/Dryer Prep: Rear Corner Closet Prepped for Optional Stacked Washer/Dryer

Side-Aisle Bathroom

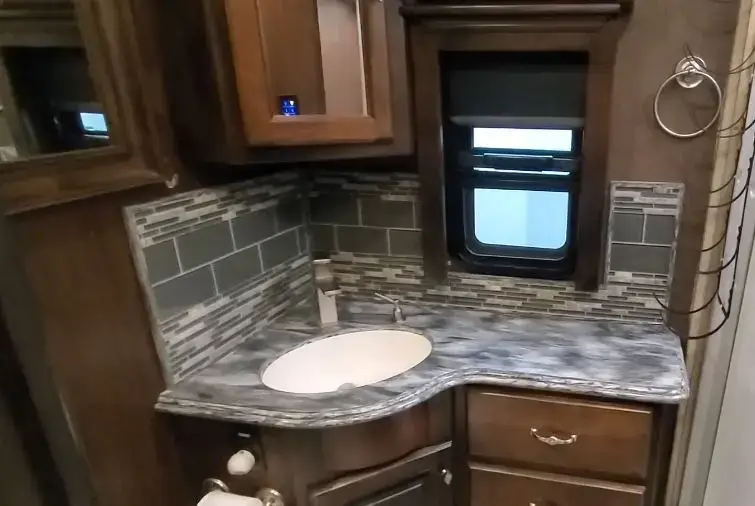

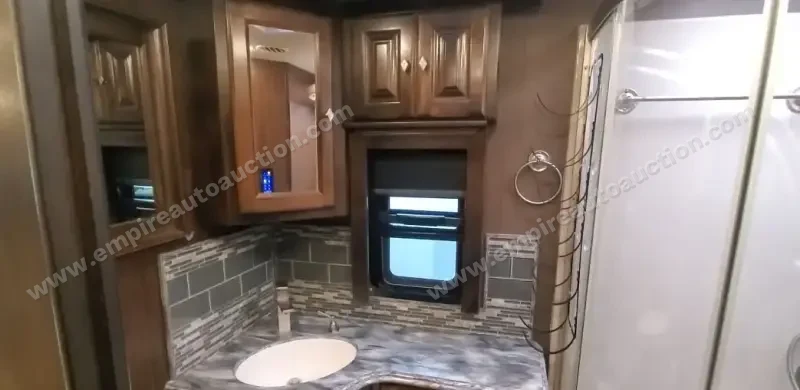

• Facilities: Side-Aisle Enclosed Bath with Large Solid Surface Vanity, Medicine Cabinet, and Toilet

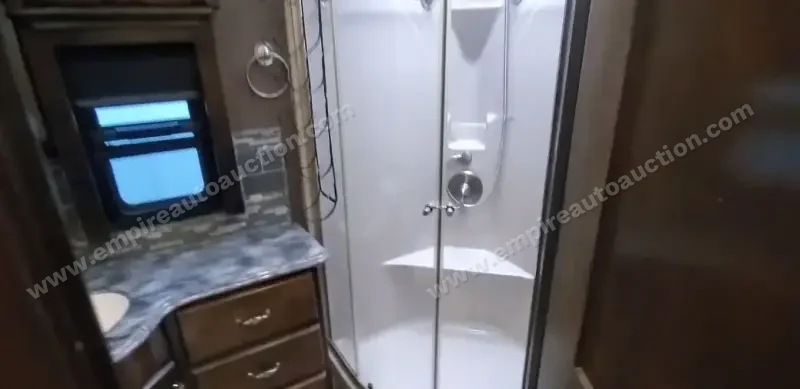

• Shower: Corner Shower Unit with Glass Enclosure and Overhead Skylight
• Ventilation: 3-Speed Fantastic® Power Roof Vent

Cockpit & Driver Compartment

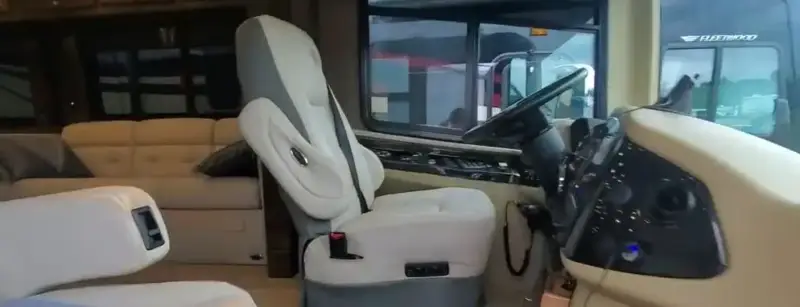

• Seating: Power Ultra Leather Driver & Passenger Seats with Passenger Footrest
• Dashboard & Controls: Contemporary Wraparound Dash, 18" VIP Steering Wheel, Dual Dash Fans, and Computer Slide-Out Tray on Passenger Side
• Monitoring & Safety: Color Rear Vision Monitor System with Turn-Signal Activated Side-View Cameras, Power Solar/Privacy Windshield Shade, and Emergency Start Switch

Specifications

• Year: 2016
• Make: Tiffin
• Model: Phaeton 40 QKH
• Slideouts: 4 (Quad Slide)
• Sleeps: Up to 9
• Overall Length: 41' 4"
• Overall Height: 12' 7"
• Interior Height: 7' 0"
• Exterior Width: 8' 5"
• GVWR: 35,320 lbs
• Hitch Weight: 10,000 lbs
• Fresh Water Capacity: 90 Gallons
• Grey Water Capacity: 66 Gallons
• Black Water Capacity: 50 Gallons
• Engine: Cummins ISC 380 HP Diesel

Highlights

✔ Freightliner Raised-Rail Chassis Powered by 380 HP Cummins ISC Diesel

✔ Family Bunkhouse Quad-Slide Layout Sleeping Up to 9 Passengers

✔ 10.0 kW Onan Diesel Generator on Manual Slide-Out & 2,000W Inverter

✔ Residential Stainless Steel Refrigerator, Convection Microwave, & Expand-an-Island

✔ One-Piece Molded Fiberglass Roof with Extraordinaire A/C System & Dual Furnaces

✔ Porcelain Tile Flooring, Raised Panel Hardwood Cabinets, & Solid Surface Counters

✔ Hydraulic Auto Leveling, Electric Hose/Cord Reels, & 10,000 lb Tow Hitch

Condition Summary

This 2016 Tiffin Phaeton 40 QKH offers one of the most functional quad-slide bunkhouse layouts in the Class A diesel category. Featuring a 380 HP Cummins powertrain, a 10.0 kW Onan generator, and sleeping capacity for up to 9 passengers, it combines residential appliances, ample tank capacities, and proven Tiffin craftsmanship for extended family travel.
